73-A Acceleration Monitor

73-A Monitor

The 73-A, acceleration monitoring system, can measure the acceleration of a component. When acceleration exceeds a preset value, an alarm can be triggered.

Features

Small size (96 x 48 x 132mm, 450g)
Easy installation into control panels (DIN standard 92 x 45mm rectangular opening)
There are two types of monitors, 73-A2 for use with a separate charge amplifier, and 73-A3 for use with accelerometers with a built-in amplifier
Cable between monitor and transducer can be several hundred meters long
Parameter settings (output scaling value, zero setting, peak value and bottom value hold, alarm delay time setting, alarm point resetting, etc.) are easily made at the front panel. Panel cover prevents accidental tampering with the settings.
The monitor determines whether or not the sensor operating conditions and installation position are correct.
Built-in power supply for charge amp or accelerometers
Free power supply (AC85-264V, 50/60Hz)
Several signal filters are included, and custom filters can be specified by the user.
A centralized control system using a personal computer can easily be constructed using these monitors due to their output of 4-20mA or RS-485 communications interface.

Front & Rear Panels

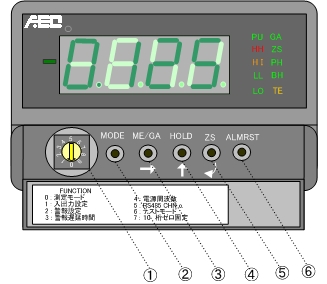

Switches on Front Panel, Cover Open

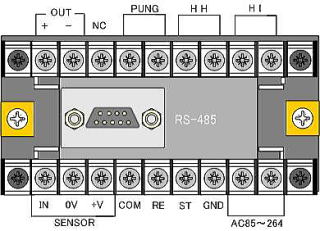

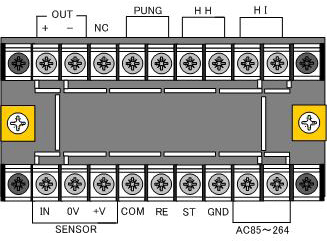

Terminals on Rear Panel

4-20mA Output	RS-485 Output

Switch	Function 1 (In Measuring Mode)	Function 2 (In Measuring Mode)
1	Function Switch (refer to spec.)	-
2	MODE (measuring/setting) Key	-
3	ME/GA Key	® (Shift)
4	HOLD (peak/bottom/peak to bottom) Key	(Up)
5	ZS (zero set) Key	¿ (Return)
6	ALM RST (alarm relay reset) Key	-

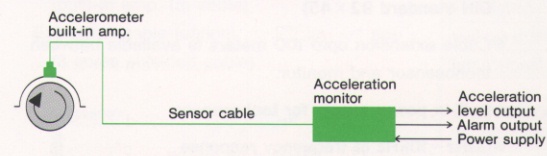

Acceleration Monitor	73-A□□□□	1 Piece
Accelerometer	AEC-122R	1 Piece
Sensor Cable	CX-□□□	1 Piece

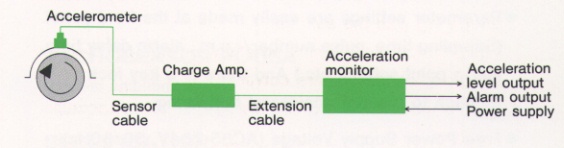

Acceleration Monitor	73-A□□□□	1 Piece
Accelerometer	AEC-5032	1 Piece
Sensor Cable	HB-□□	1 Piece
Charge Amplifier	CA-95	1 Piece
Extension Cable	EC-□□□□-P	1 Piece

Type Selection

Acceleration Monitor 73-A	Spec. No.	Specification
Input	2	4-20mA from charge amp
Input	3	Accelerometer built-in amp
LPF	1	10kHz LPF
HPF	1	5Hz HPF
Output	None	Output of 4-20mA
Output	R	Output of RS-485

Accelerometer	Specification	Remarks
Accelerometer (built-in amp)	Output 7.2V±0.7V Power 18V, 3.5mA Supplied from the monitor	Charge amp not required
Accelerometer	Sensitivity 1~111pC/G	Charge amp required

Accelerometer

Specification

Remarks

Accelerometer (built-in amp)

Output 7.2V±0.7V

Power 18V, 3.5mA

Supplied from the monitor

Charge amp not required

Accelerometer

Sensitivity 1~111pC/G

Charge amp required

Sensor Cable	Specifications
HB-□□	Low noise cable □□ meters
CX-□□	Coaxial cable □□ meters

Charge Amplifier	Specification
CA-95	For Accelerometer of 1~111pC/G

Extension EC-□□□□-P	Spec. No.	Specification
Length	□□	□□ meters
Connector	AA	Arrow type terminals
Wire Type	P	3 cores shielded

Accelerometer	Standard	High Temperature	Built-in Amplifier
Model No.	AEC-5032	AEC-50H	AEC-122R
Sensitivity	50pC/G	50pC/G	100mV/G
Temperature	-20°C~+150°C	-20°C~+250°C	-20°C~+110°C
Weight	32g	35g	55g
Size (mm)	Hex14 x H25mm	Hex14 x H29mm	Hex16.8 x H48mm
