73-V Vibration Monitor

73-V Monitor

The 73-V can measure shaft vibration amplitude without target contact using a GAP-SENSOR. When vibration exceeds a preset value, an alarm can be triggered.

Features

Small size (96 x 48 x 132mm, 450g)
Easy installation into control panels (DIN standard 92 x 45mm rectangular opening)
Cable between monitor and transducer can be several hundred meters
Parameter settings (output scaling value, zero setting, alarm point resetting, etc.) are easily made at the front panel. Panel cover prevents accidental tampering with the settings.
The monitor determines whether or not the sensor operating conditions and installation position are correct.
The power supply for the transducer is equipped in the monitor.
Free power supply (AC85-264V, 50/60Hz)
Several signal filters are included, and custom filters can be specified by the user.
A centralized control system using a personal computer can easily be constructed using these monitors due to their output of 4-20mA or RS-485 communications interface.

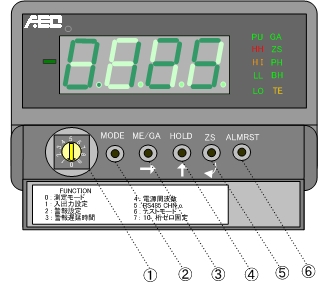

Front & Rear Panels

Switches on Front Panel, Cover Open

Terminals on Rear Panel

4-20mA Output	RS-485 Output

Switch	Function 1 (In Measuring Mode)	Function 2 (In Measuring Mode)
1	Function Switch (refer to spec.)	-
2	MODE (measuring/setting) Key	-
3	ME/GA Key	® (Shift)
4	HOLD (peak/bottom/peak to bottom) Key	(Up)
5	ZS (zero set) Key	¿ (Return)
6	ALM RST (alarm relay reset) Key	-

Vibration Monitor	73-V□□	1 Piece
Sensor	S-06-□□	1 Piece
Sensor Cable	PC-□□□□	1 Piece
Transducer	7606-□□	1 Piece
Extension Cable	EC-□□□□-P (optional)	1 Piece

Type Selection

Vibration Monitor 73-V	Spec. No.	Specification
Input	1	Input of 1-5V
Input	2	Input of 4-20mA
LPF	1	10kHz LPF
HPF	1	5Hz HPF
Output	None	Output of 4-20mA
Output	R	Output of RS-485

Sensor	Spec. No.	Specification
S-06
Cable	None	400mm
Cable	-1	1000mm
Armored Cable	None	No Armor
Armored Cable	F	Armored Cable

Sensor Cable PC-□□		Spec. No.	Specification
Length	3-Meters System	03	300mm with S-06
	3-Meters System	02	1970mm with S-06-1
	6-Meters System	06	6000mm with S-06
	6-Meters System	05	4970mm with S-06-1
Connector		YY	Connector both sides
Armored Cable		None	No armor
Armored Cable		F	Armored cable

Transducer 7606-□□	Spec. No.	Specification
Type	3	For 3-meters cable system
Type	6	For 6-meters cable system
Output	4	Output of 0.6mm/V
Output	A	Output of 4-20mA/FS

Extension Cable EC-□□□□-P	Spec. No.	Specification
Length	□□	□□ meters
Connector	AA	Arrows type terminals
Wire Type	P	3 cores shielded
