55MS Series

This 55MS rack style transformation device arranges the volume for correction in the panel entire surface and even the power supply excels and includes. The trouble and time when able to cancel the inconvenience of wiring by this and be linked to correction can be shortened substantially. Also, the 55MS rack style transformation device is 3 kinds (S M L) and respond and able to correspond to plural GAP-SENSOR individually size.

Front & Rear Panels

60mm Wide x 120mm High x 140mm Deep, 650g

Gain

Gain [V/mm], the output voltage verses gap, is changed. The center of the change is on 0V.

Zero

Output voltage can be shifted, without changing its gain, to adjust the voltage to zero.

Linearity

The linearity of the typical response can be adjusted. ZERO and GAIN must be readjusted after LINEARITY has been adjusted.

Features

Non-contact measurement device
DC~20kHz response
Ability to measure displacement and vibration
Many sensors to choose from, ultra miniature in size and a variety of shapes
Easy calibration and adjustments
Digital display of output voltage
Free power supply (AC85-264V, 50/60Hz)
Multi-channel type available

55MS-S System

Transducer		55MS-S
Sensor		PU-01	PU-015A	PU-015S	PU-02A	PU-03A
Sensor Cable		PC-03YY
Measuring Range		0~0.15mm	0~0.3mm	0~0.2mm	0~0.5mm	0~1.0mm
Output Voltage		0.1mm/V	0.1mm/V	0.1mm/V	0.2mm/V	0.2mm/V
Resolution at point 1/2 full-scale		0.8mm	0.8mm	0.8mm	0.8mm	0.8mm
Frequency Response		DC~20kHz
Linearity		±3%	±1.7%	±5%	±2%	±1%
Operating Temperature Range	Sensor	-20~+120°C	-20°C~+180°C
Operating Temperature Range	Transducer	0°C~+50°C
Temperature Variation	Sensor	0.3mm/°C	0.7mm/°C	0.7mm/°C	0.9mm/°C	0.6mm/°C
Temperature Variation	Transducer	0.3mm/°C	2.0mm/°C
Power Supply		AC85~264V 47~440Hz 10VA

55MS-M System

Transducer		55MS-M
Sensor		PU-05	PU-07	PU-09
Sensor Cable		PC-03YY
Measuring Range (when target is iron)		0~2.0mm	0~3.0mm	0~4.0mm
Output Voltage		0.2mm/V	0.3mm/V	0.4mm/V
Resolution at point 1/2 full-scale		0.8mm	1.2mm	1.6mm
Frequency Response		DC~20kHz
Linearity		±5% ±3%(0~0.2mm, 1.8mm~2mm)	±5% ±3%(0~0.3mm, 2.7mm~3mm)	±5% ±3%(0~0.4mm, 3.6mm~4mm)
Operating Temperature Range	Sensor	-20°C~+180°C	-20°C~+120°C
Operating Temperature Range	Transducer	0°C~+50°C
Temperature Variation	Sensor	1.0mm/°C	1.5mm/°C	1.6mm/°C
Temperature Variation	Transducer	2.0mm/°C	3.0mm/°C	4.0mm/°C
Power Supply		AC85~264V 47~440Hz 10VA

55MS-L System

Transducer		55MS-L
Sensor		PU-20	PU-30	PU-40
Sensor Cable		PC-03YY
Measuring Range (when target is iron)		0~8.0mm	0~12.0mm	0~16.0mm
Output Voltage		0.8mm/V	1.2mm/V	1.6mm/V
Resolution at point 1/2 full-scale		4.8mm	7.2mm	9.6mm
Frequency Response		DC~20kHz
Linearity		±5% ±3%(0~0.8mm, 7.2mm~8mm)	±5% ±3%(0~1.2mm, 10.8mm~12mm)	±5% ±3%(0~1.6mm, 14.4mm~16mm)
Operating Temperature Range	Sensor	-20°C~+120°C
Operating Temperature Range	Transducer	0°C~+50°C
Temperature Variation	Sensor	4.0mm/°C	6.0mm/°C	8.0mm/°C
Temperature Variation	Transducer	8.0mm/°C	12mm/°C	12mm/°C
Power Supply		AC85~264V 47~440Hz 10VA

Sensor Illustrations

PU-01
PU-015S
PU-015A

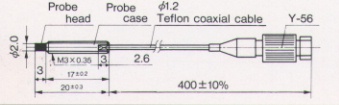

PU-02A
PU-03A
PU-05
PU-07
PU-09
PU-20
PU-30
PU-40

Optional Equipment

Four unit storage rack
