This is an easy to use, compact GAP-SENSOR with a built-in amplifier.  It provides an output voltage proportional to the distance (gap) between the sensor and target.  It can be used for detecting position, displacement, monitoring vibration, finding metal, rotating speed, and other applications.  An optional extension cable up to 100 meters or a flexible armored cable can be used.

Specifications

Sensor

ML-06

Measuring Range

0~1200mm (when target is iron)

Target

Output characteristics will differ for other target materials like aluminum, stainless steel, or copper.  Contact AEC for assistance.

Sensor Location

For measuring rotational speed, the sensor should be located 1.0±0.5mm from the target.

Output Voltage

2~5V, 8.2kΩ max (when power supply is +12V DC) Please refer to figure 1 in case of other supply voltage.

Frequency Response

DC~10kHz

Operating Temperature

-20°C~+105°C

Power Supply Voltage

DC5V~18V, 10mA max  (stable DC power supply required)

Water Proof

IP66

Vibration Tolerance

JIS E4031 2A (40Hz 10G)

 Dimensions

Click to Enlarge

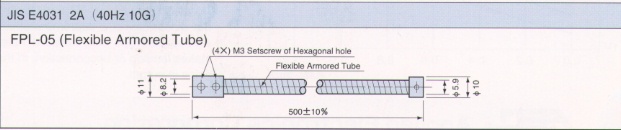

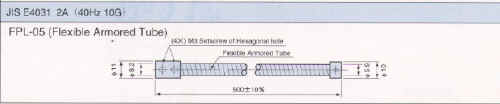

Optional

Click to Enlarge

Basic Characteristics

Click to Enlarge

(Output Characteristics Depend on Target Materials)
