Click to Enlarge
PU-015

PU-015-3

Click to Enlarge

PU-015-6

Click to Enlarge

PU-015A

Click to Enlarge

PU-015B

Click to Enlarge

PU-015S

Click to Enlarge

Measuring Range

0~300mm

Operating Temperature Range

-20°C~+180°C

Frequency Response

DC~20kHz

Output Voltage

0.1mm/V

Resolution

0.5mm

Transducer

AEC-55015

Sensor Cable

PC-03YY

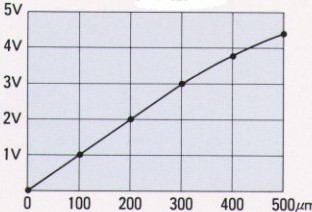

Output Characteristics

Click to Enlarge

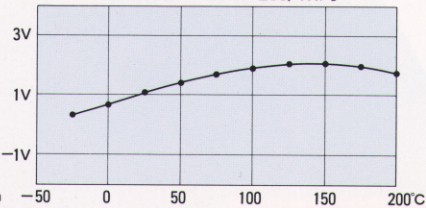

Temperature Characteristics

Click to Enlarge (GAP200mm)
PU-02A Click to Enlarge

Measuring Range

0~500mm

Operating Temperature Range

-20°C~+180°C

Frequency Response

DC~20kHz

Output Voltage

0.2mm/V

Resolution

0.5mm

Transducer

AEC-5502A

Sensor Cable

PC-03YY

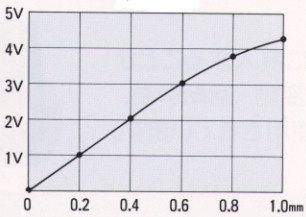

Output Characteristics

Click to Enlarge

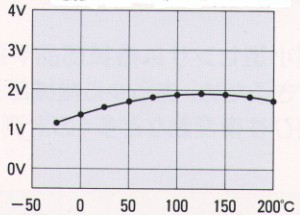

Temperature Characteristics

Click to Enlarge (GAP300mm)

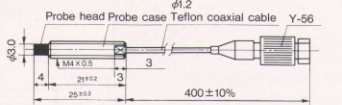

PU-03A Click to Enlarge

Measuring Range

0~1000mm

Operating Temperature Range

-20°C~+180°C

Frequency Response

DC~20kHz

Output Voltage

0.2mm/V

Resolution

0.5mm

Transducer

AEC-5503A

Sensor Cable

PC-03YY

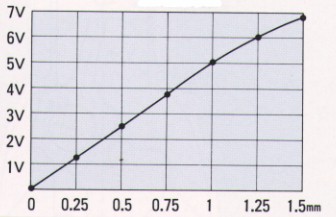

Output Characteristics

Click to Enlarge

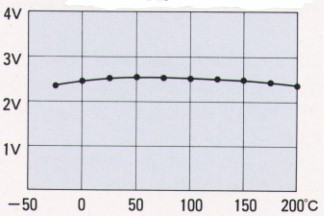

Temperature Characteristics

Click to Enlarge (GAP500mm)
