73 Series Digital Monitoring Systems

The 73 Series Digital Monitoring System is a compact (48 x 96 mm), multifunctional, low-cost, intelligent monitoring system, used on rotating machinery such as turbines, compressors, motors, generators, pumps, fans and blowers.  The 73 Series can be used for position control on many different kinds of machines.  Each monitoring system is self contained.

Features

Monitoring System

These monitors are also possible to connect with a computer to be centralizing control.  By software, it becomes possible that the dates are stored in a computer and the useful reports (daily monthly) are printed out.  It will contribute to

Specifications

Measuring Range

0~2.4mm (Iron Target)

Measuring Accuracy

3%/Full Scale

Resolution

0.5mm

Frequency Response

DC~20kHz

Operating Temperature Range

Sensor

-20C~+180C

Sensor Cable

-20C~+105C

Transducer

-10C~+70C

Temperature Variation

Sensor

0.8mm/C(-20C~+80C)

Transducer

2mm/C(-10C~+70C)

Output

1~5V, 50W (connected to the monitor)

Power Supply

DC +11~26V, 25mA (supplied from the monitor)

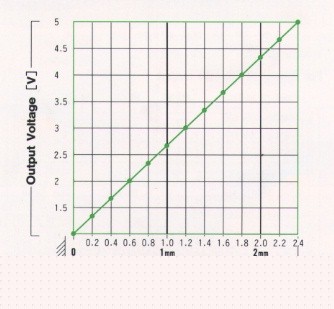

Output Characteristics

Click to Enlarge

Installation Schematic

Click to Enlarge

Sensor Selection

Model No. Sensor Cable Length Connector Remarks
S-06 400mm10mm Y-56 3-Meters or 6-Meters System
S-06-1 1000mm10mm

Sensor Cable

Model No. Sensor Cable Length Connector Remarks
PC-03YY 3000mm20mm Y-53 (both) 3-Meters System
PC-02YY 1970mm20mm
PC-06YY 6000mm20mm 6-Meters System
PC-05YY 4970mm20mm

Transducer

Model No. Connector Terminal Block Remarks
7606-34 Y-51 +V. 0V. 0V. Output

4 Terminals

3-Meters System
7606-64 6-Meters System

External Dimensions

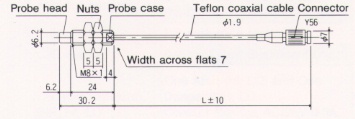

Sensor S-06□

Click to Enlarge

Sensor S-06-□F

Click to Enlarge

Sensor Cable PC-□□YY

Click to Enlarge

Sensor Cable PC-□□YYF

Click to Enlarge

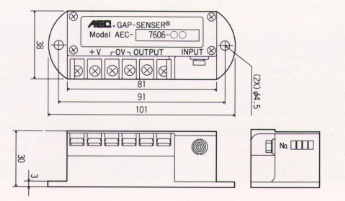

Transducer 7606-□□

Click to Enlarge

Types of Monitors
