GAP-SENSORS

Classification Sensor Transducer Measuring Range Operation Temperature Range Remarks

Miniature Sensor

PU-01

5501

0~0.15mm

-20C~+180C Probe Head Size 1.0mm

PU-015

55015

0~0.3mm

Power Supply DC15V

PU-02A

5502

0~0.5mm

PU-03A

5503

0~1.0mm

55 Series

PU-05

5505

0.05~2.0mm

PU-07

5507

0.1~3.0mm

-20C~+120C

PU-09

5509

0.2~4.0mm

PU-14

5514

0.3~6.0mm

PU-20

5520

0.4~8.0mm

PU-30

5520

0.6~12.0mm

PU-40

5520

0.8~16.0mm

55M Series

PU-01

55MS-S

0~0.15mm

Free Power Supply

Several Sensors to select from

PU-015

0~0.3mm

-20C~+180C

PU-02A

0~0.5mm

PU-03A

0~1.0mm

PU-05

55MS-M

0.05~2.0mm

PU-07

0.1~3.0mm

-20C~+120C

PU-09

0.2~4.0mm

PU-20

55MS-L

0.4~8.0mm

PU-30

0.6~12.0mm

PU-40

0.8~16.0mm

37 Series

DPU-10A

3710

0~5.0mm

-20C~+80C Low temperature characteristic that does not rely on measurement material

DPU-20A

3720

0~10.0mm

DPU-30A

3730

0~15.0mm

DPU-40A

3740

0~20.0mm

71 Series

S-06A

7606

0.1~2.4mm

-20C~+180C Power Supply DC+12~24V

52 Series

-

52XX

-

-

Non-interference type

HF Series

-

55HF

-

-

High frequency response, DC200kHz measuring

57 XXPS

-

57XXPS

-

-

High resolution type

ML Series

ML-06

0~1200mm

-20C~+105C Bolt-in with amplifier

Calibrators

Type Calibrating Range Display Illustration

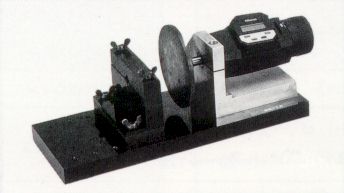

AEC-1003 0~50mm

1mm Unit Digital Display

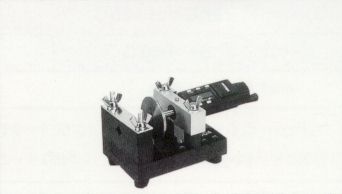

AEC-1004 0~25mm

1mm Unit Digital Display

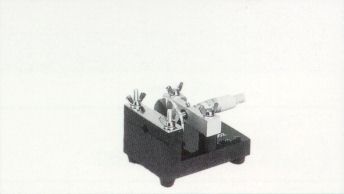

AEC-1002 0~25mm

10mm Unit Display
